• Creality CR-6 SE
• CR-6 Max
• CR-10 Smart

Main Features

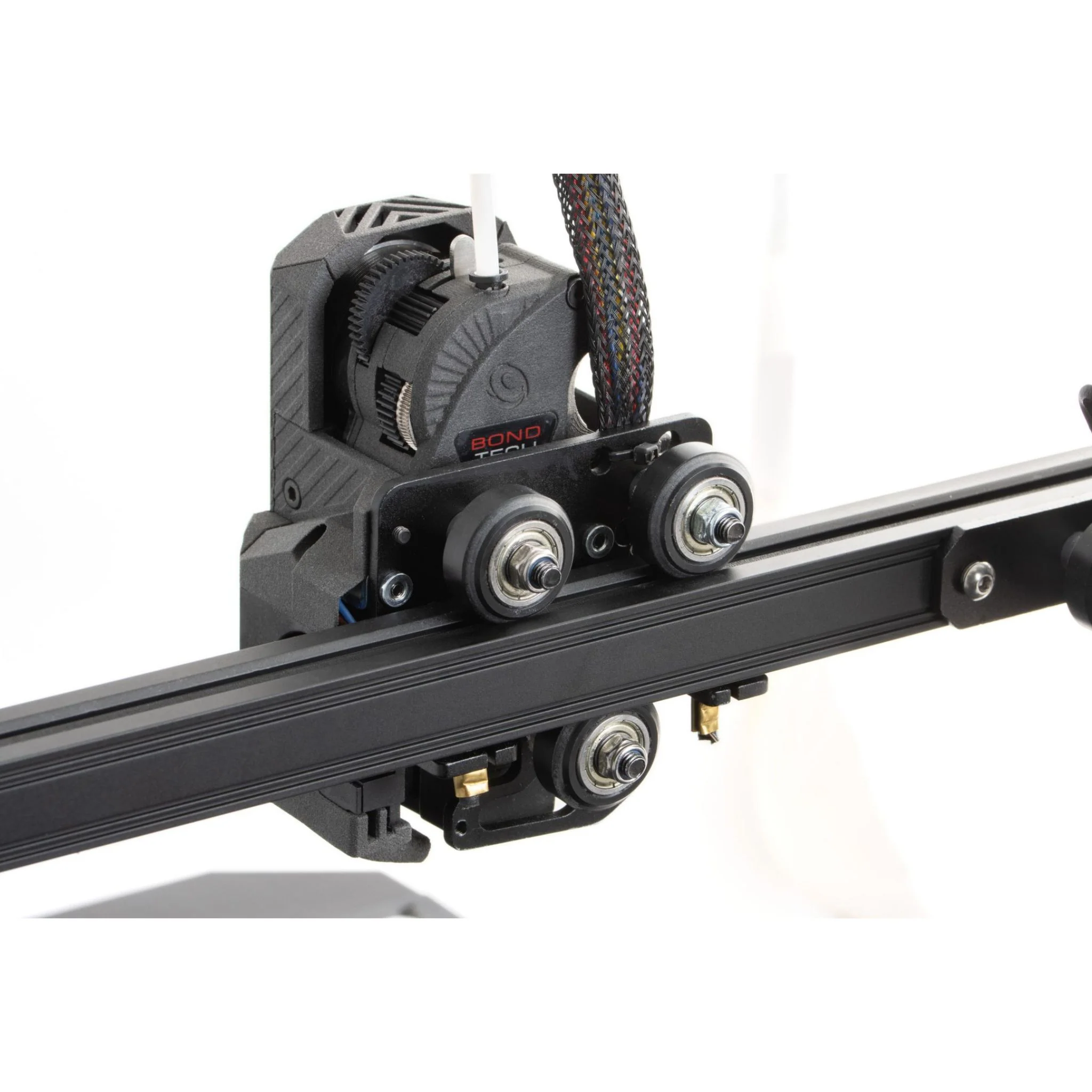

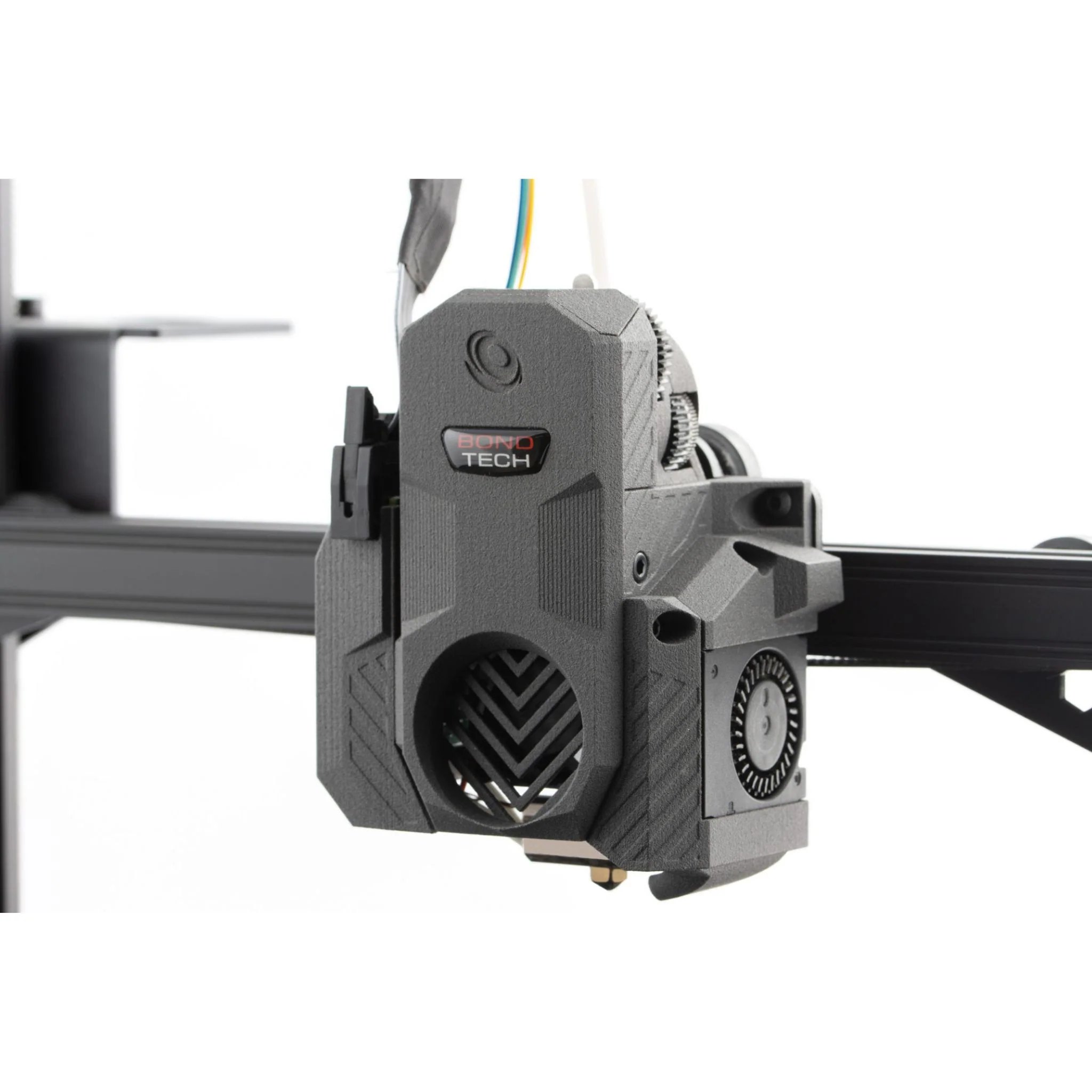

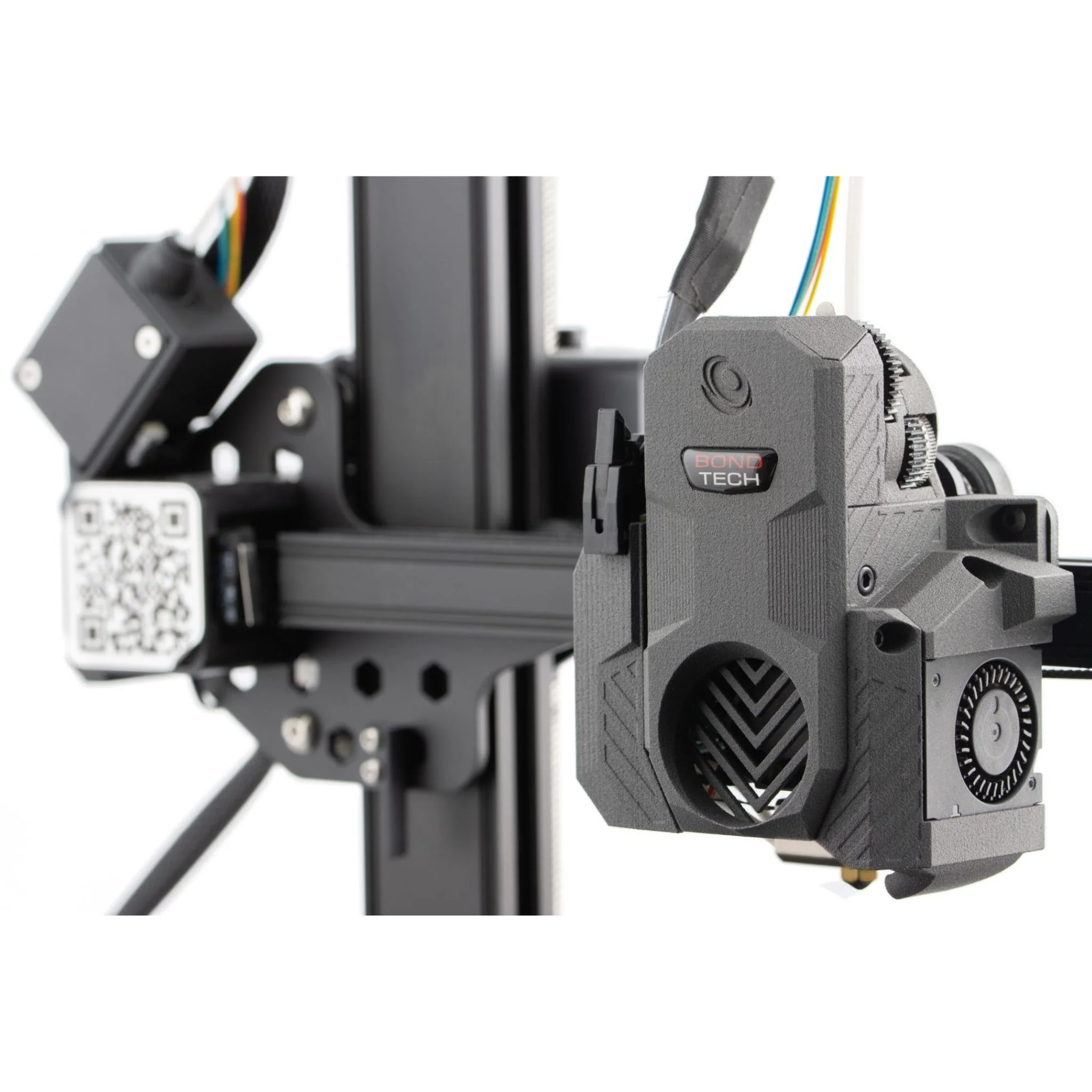

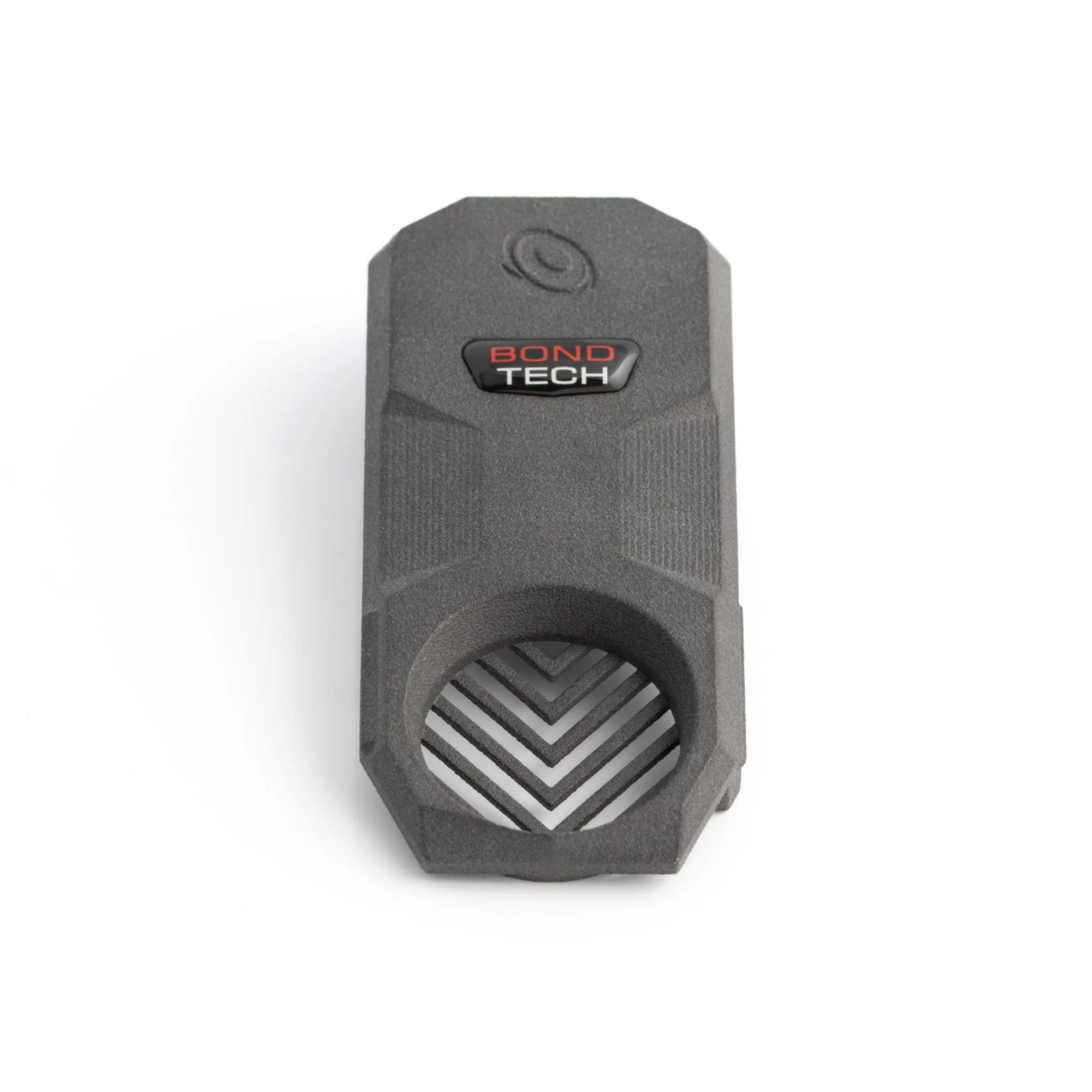

• Converts the compatible printers from a bowden to a direct-drive setup
• Limits the extra load on the strain gauge to the LGX Lite itself
• Allows for strain gauge leveling since the housing is light and insulated from the extruder
• Compatible with all stock hotends and cooling fans
• Easy to remove for maintenance and service of the hotend and extruder

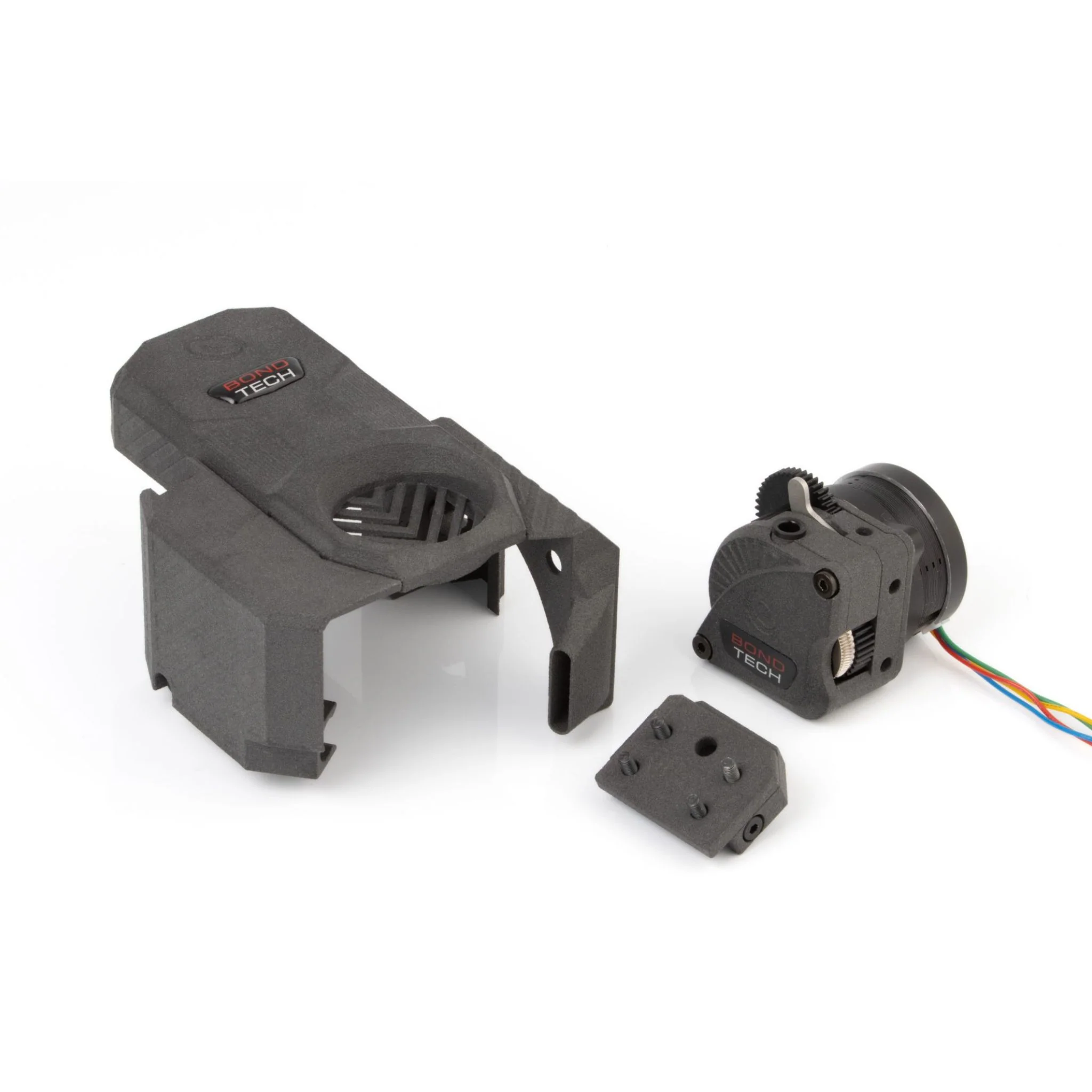

Please Note: The LGX Lite Extruder is not included and must be purchased separately to use this kit.

Additional Features

- Weight: 65 g
- E-steps : 562 @ 16 microsteps
- Klipper’s rotation_distance : 5.7
- Stepper motor current : 0.45 to 0.65 A max

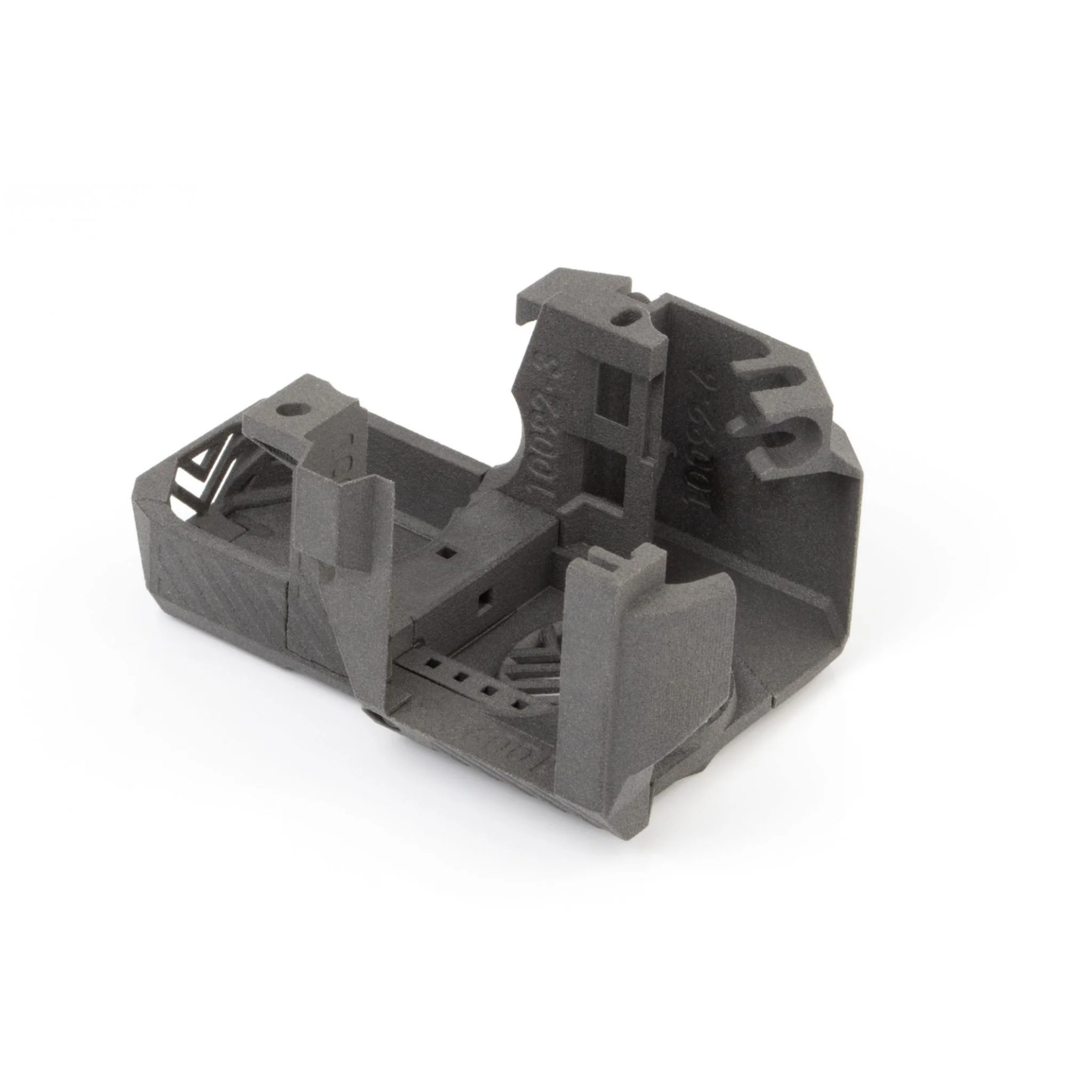

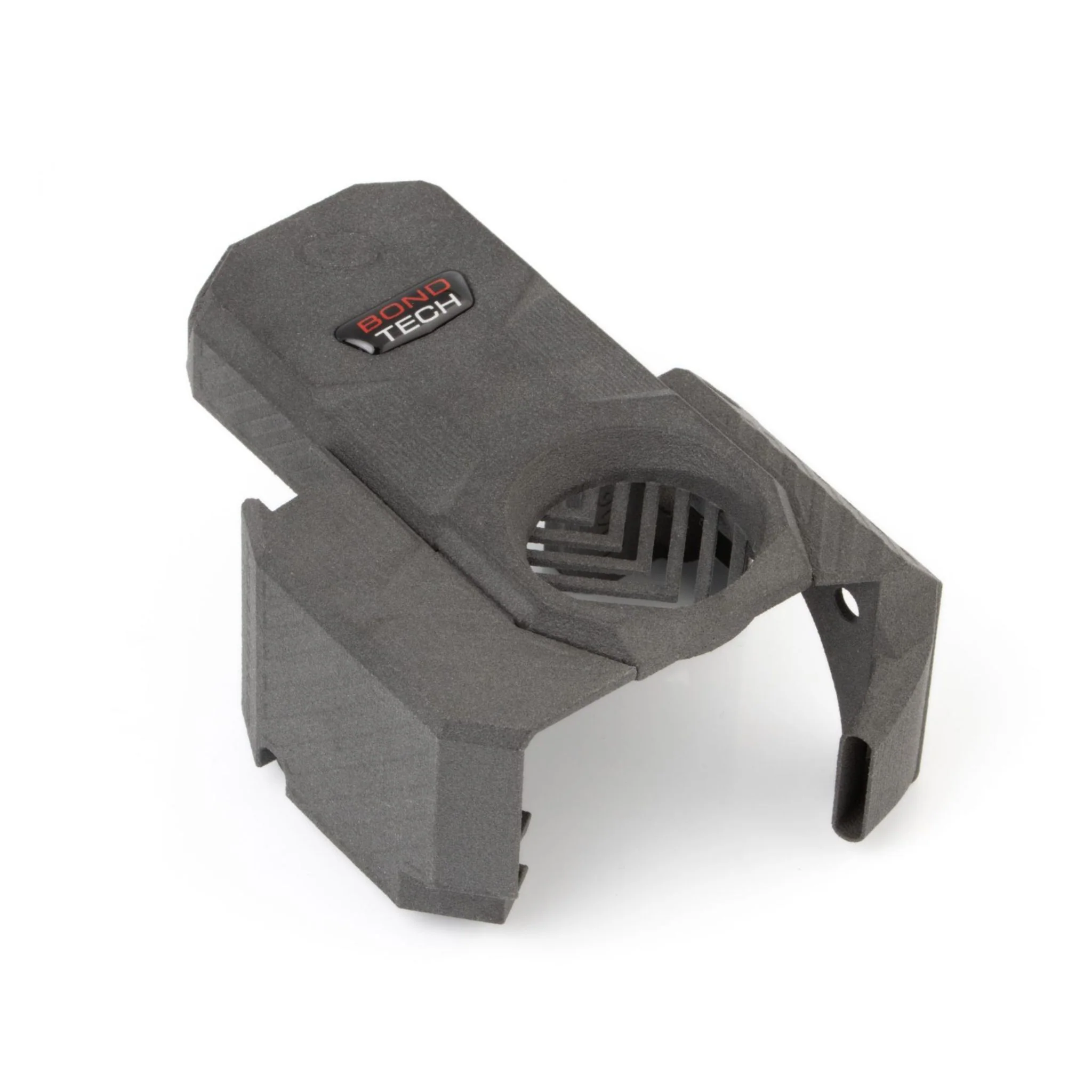

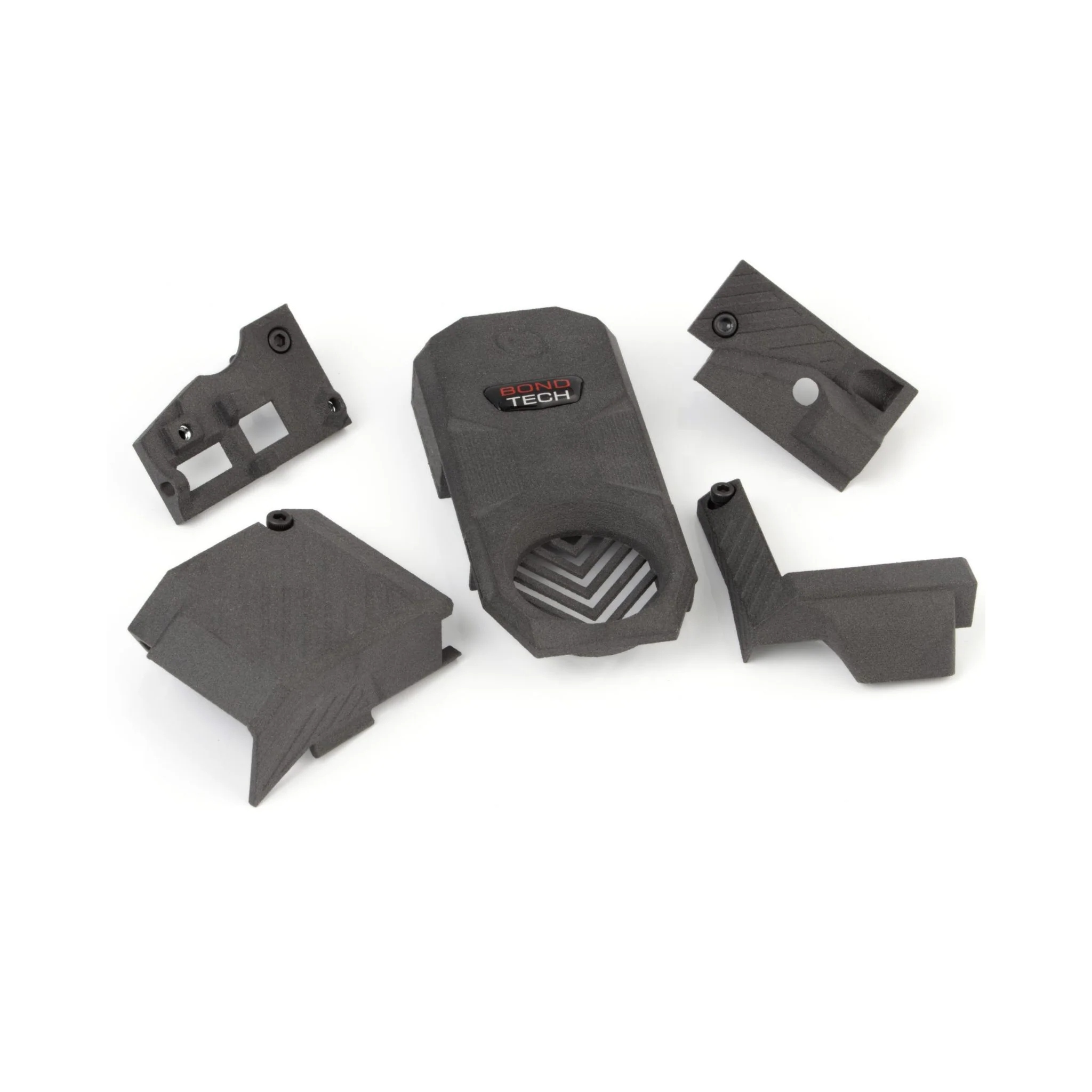

- Material: Grey polyamide with no dyeing
- Fan Z-Position: Adjustable
- Coating: Wax protective coating
- Max operating temperature : 90°C
- Compatible Hotends (with the addition of an Arrow Hotend Upgrade Adapter Set):

• Copperhead® Screw Mount Hotend
• Mosquito® Hotend
• Mosquito® Magnum Hotend
• Mosquito® Magnum+ Hotend - Air
